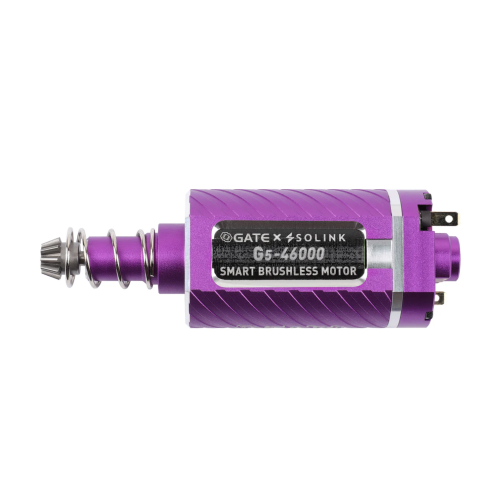

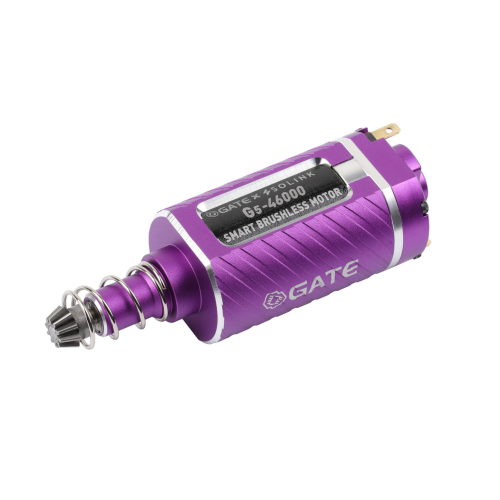

GATE G5 - 46000 Smart Brushless Motor
Code: SBM-G5
Introducing the Revolutionary G5 Smart Brushless Motor
Experience the future of airsoft with the world's first programmable Airsoft brushless motor, exclusively compatible with GATE TITAN II or ASTER II Bluetooth®. The G5-46000 Smart Motor empowers you to take control of your airsoft experience like never before.Precision at Your FingertipsCustomisable Speed: Dial in the perfect RPM, from a leisurely 10,000 to a blistering 46,000.
Tailored Torque: Adjust the torque to match your gearbox configuration for optimal performance.
Smooth and Powerful: Enjoy extended gearbox life with Soft Start or lightning-fast response with Fast Start.
Innovative Features, Unmatched Performance
On-the-Fly Adjustments: Modify settings mid-game directly from your GCS app.
Built-in Anti-Reversal: Eliminate the need for traditional latches and enjoy quieter, more precise operation.
Blazing-Fast Response: Instantaneous trigger response for lightning-quick reactions.
Efficient Power Delivery: Reduce battery drain and motor heat with high efficiency.
Unleash the Power: High torque handles demanding setups, while adjustable speed accommodates various gearbox configurations.

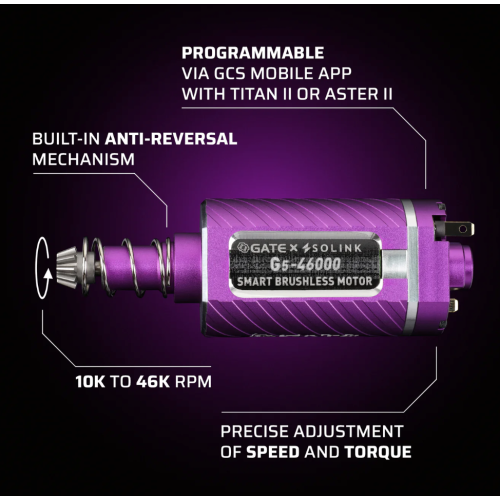

Features
- The world's first brushless motor programmable via GCS mobile app exclusively with GATE TITAN II or ASTER II Bluetooth®
- Integrated anti-reversal mechanism ensures quieter operation and ultra-precise pre-cocking
- Extremely high torque, reaching up to 2334 g-cm
- Very wide RPM range: 10 000 - 46 000 RPM
- Highly durable motor connectors
- Integrated motor shaft manufactured using CNC technology
- Exceptionally effective braking system
- D-type pinion gear
Specification of GATE G5 Brushless Motor for 11.1V
AT NO LOAD:
SPEED - 45 800 RPM
CURRENT - 3.2A
AT MAXIMUM EFFICIENCY:
EFFICIENCY - 75.9%
SPEED - 40 987 RPM
TORQUE - 500 G/CM
CURRENT - 24.9 A
OUTPUT - 205 WATTS
AT MAXIMUM OUTPUT:
EFFICIENCY - 48.4%
SPEED - 22 950 RPM
TORQUE - 2334 G/CM
CURRENT - 105 A
OUTPUT - 519 WATTS
Supply Voltage Range
6 - 16.8 V
Dimensions (Length x Width x Height)
88.5 x 29.5 x 25 mm
Finished Product Weight
141 g
Compatibility
GATE G5 Smart Brushless Motor is compatible with all standard V2 gearboxes
ETUs - smart functions
-TITAN II Bluetooth
-ASTER II Bluetooth
ETUs - standard use
-ASTER SE for V2
-ASTER SX for V2
-TITAN V2 (1st generation)
-other brand V2 ETUs
Unleash the Power of GATE G5™ and ASTER II/TITAN II
Take complete control of your airsoft replica with the GATE G5™ Brushless Airsoft Motor and ASTER II/TITAN II Bluetooth®. The intuitive GCS app empowers you to:
Customise Your Performance: Adjust airsoft motor speed and torque on the fly, even during intense gameplay.
Wireless Control: Command your replica from your smartphone (Android or iOS), tablet, or PC (Windows or macOS).
Seamless Settings: Easily tweak ASTER II/TITAN II settings mid-game for optimal performance.
Stay Updated: Keep your devices running smoothly with the latest firmware updates.
Monitor Your Gear: Access real-time diagnostics, BB counters, electrical measurements, and performance statistics.
Stay Connected: Receive the latest news and updates from GATE Enterprise.
Real-Time Insights: View essential data like magazine status and battery level on your smartwatch (Wear OS or watchOS).
Automatic Configuration: Enjoy seamless integration between GCS and your G5 Smart Brushless Motor.
Troubleshooting Made Easy: Identify and address potential issues with clear DTC error messages.
