Gate

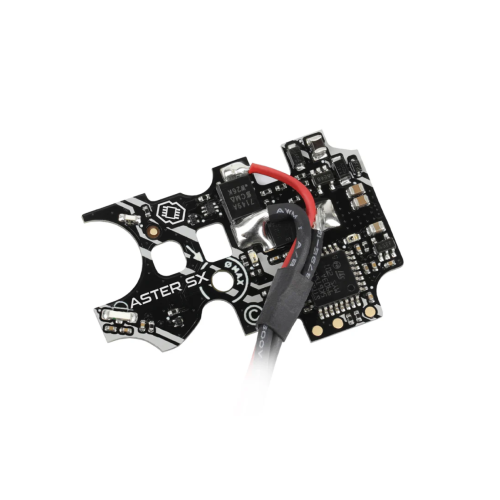

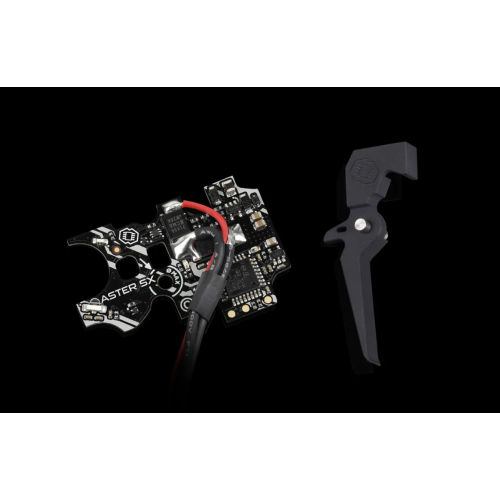

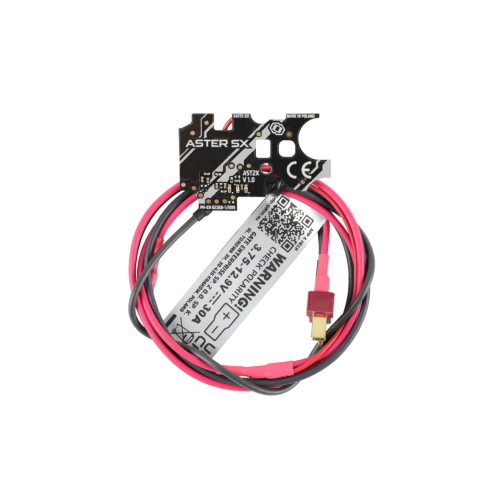

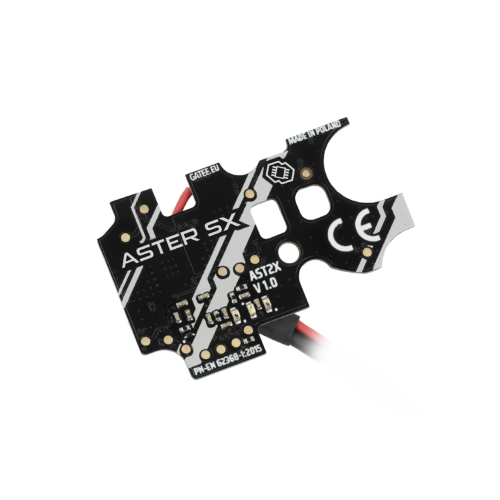

Gate ASTER SX EXPERT for V2 GB + Quantum Trigger - Rear Wired
Code: AST2X-R
What distinguishes ASTER V2 SX from the competition?
ASTER SX is future-proof, thanks to compatibility with USB-Link and Blu-Link. You can update your firmware and get new options, connect additional accessories, check telemetry.
What is an ETU? It is an Electronic Trigger Unit replacing trigger contacts and the cut-off lever, which takes control of your AEG.
Why ASTER's programming via trigger is user-friendly?
-you do not need to rush
-you can navigate the menu very quickly and efficiently or slowly and calmly
-the colours of the led lights are only a help – you can rely on the vibration of the motor
-in case of any problems, you can use the very popular USB-Link or Blu-Link and use the GCS App
What is the self-learning automatic pre-cocking?
thanks to Pre-cocking, you gain trigger reaction similar to real life
it will automatically set piston position
it is easy-to-use, just set one of the 3 modes: LOW, MID or HIGH
it automatically adapts to the battery voltage and rate of fire
ASTER gives you great flexibility and is future-proof. Today you can program the most important functions with the trigger, and tomorrow you can borrow a USB-Link or Blu-Link from a friend to configure advanced functions, perform a firmware update, run diagnostics or use the GCS app on a smartwatch
Hair-trigger – up to 60 sensitivity in the first millimetre of trigger movement
Top-notch automatic pre-cocking
Foregoing reverse polarity protection in exchange for unparalleled performance
You can update its firmware via the Internet
ASTER is a part of the GATE Ecosystem
Lowest in the market current consumption. Deep sleep mode with only 0.29 mA current consumption prevents battery discharge
Built-in voltage boost converter allows for trouble-free operation with weaker batteries and increases the switching efficiency
3.75 V ready – it operates at very low voltage (even 1.2 V during the shot), which is important in high-tuned AEGs, where the voltage under load drops significantly
Sensor that supports Infinite Torque-up, DSG, SSG, 19-tooth and standard gears
The possibility of using a mechanical trigger lock
Compatibility with brushless motors
Specifications:
Supply Voltage Range 3.75-12.9 V
Rated Current 30 A
Current Consumption 23 mA
Low Power Mode 288 µA
Dimensions (Length x Width x Height) 43.8 mm x 28.7 mm x 7.7 mm
Finished Product Weight 23.35 g
Operating Temperature Range min. -15°C max. + 50°C
Relative Humidity ≤ 80%
Comparison between ASTER units:
ASTER V2 SX
Brushless motors compatibility: Full compatibility with popular brushless motors – even with batteries up to 11.1 V
Heat dissipation: Reduced unit heating while accommodating higher loads
Strong spring compatibility: Up to M200 spring
De-Cocking: Rev. 2
PCB thickness: ↕️ 1 mm thick PCB
Sensor Diagnostic Mode:Enhanced
ASTER V2 SE
Brushless motors compatibility: Partial compatibility with brushless motors. Recommended battery capacities up to 7.4 V
Heat dissipation: Standard units heating while accommodating higher loads
Strong spring compatibility: Up to M150 spring
De-Cocking: Rev. 1
PCB thickness: ↕️ 0.9 mm thick PCB
Sensor Diagnostic Mode: Basic
